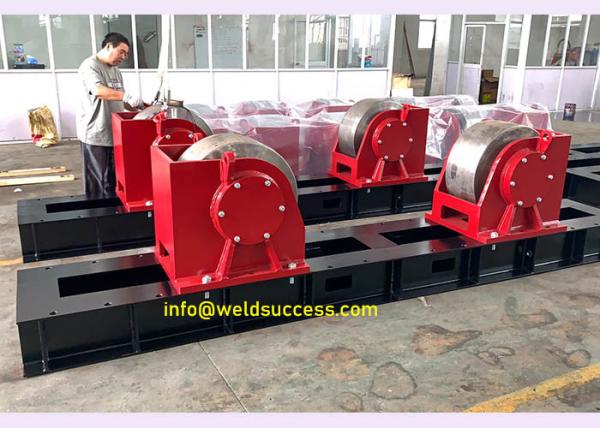

Steel Wheel Tank Conventional Centering Rotators, 100T Pipe Welding Rotator With Hand Box And Foot Pedal
WELDSUCCESS PRODUCTS.pdf
Conventional welding rotator can adjust the center distance by reserved screw holes or lead screw in order to adapt to diameter of work piece. It can joint control with other equipments.
The conventional welding rotator is mainly used for the welding,polishing,painting and assembly of cylindrical roller shell. It also can assembling or using together with other tooling for the cone inequality diameter rotary.
Here Below is 100T Conventional Pipe Welding Rotators Specification:
| Model | CR-100 |
| Load capacity - Drive | 50 tons maximum |
| Load capacity - Idler | 50tons maximum |
| Load capacity - Set | 100 tons maximum |
| Rotation capacity | 100 tons maximum |
| Vessels diameter | Min. 800mm ~ Max.5000mm |
| Rotation speed | 100~1000 mm/min VFD |
| Rotation power | 2*3kw with fan cooling |
| Roller wheels | PU (Polyurethane wheels) |
| Control way | Remote hand control + Foot pedal |
| Input Voltage | 110V ~ 575V Single/3 Phase 50/60Hz |
| Certificate | CE approval |
Tank Turning Rolls Control System:
Pipe Welding Rollers Spare parts brand
| Our welding rotator Electric system is from Schneider |
| Our pipe welding support Inverter is from Danfoss / Yaskawa |
| Our pipe welding rotator Motor is from Invertek |
| Our Tank turning rolls Reducer is from China brand |
Conventional Pipe Welding Rotator's Features:
1. Roller center distance could be manually adjusted by reserved screw bolt, so as to suitable for various work piece diameter.
2. Power roller of the welding rotator is driven by double motor. Reducer adopts cycloidal planetary gear reducer or worm reduction gear mode.
3. It can joint control with other equipments such as welding manipulator,welding machine, gantry type welding machine and so on.
4. Conventional welding rotator is the device for special purpose adopted to weld metal cylinder especially pressure vessel.
5. It can joint control with other equipments such as welding manipulator,welding machine, gantry type welding machine and so on.
After sale service
1. We provide 12month guaranty period for the whole machine quality.
2. During the warranty time, any issue proved because of the machine flaw itself,we would take the whole responsibility of it.
3. Except of the guaranty period,technical advisory support is available freely covering the whole using life of the machine.
4. Engineer service on user premises is also available for necessary.
DO NOT HESITATE ! JUST SEND US YOUR INQUIRY NOW.
